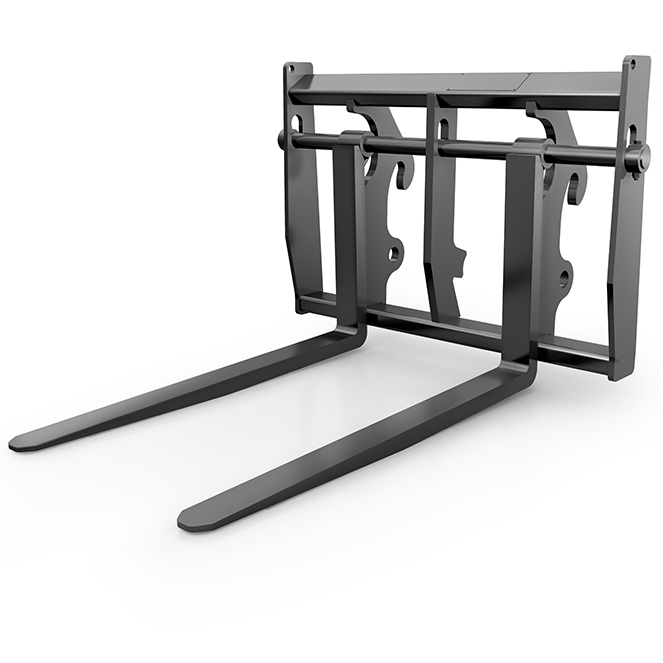

Floating Frames and Forks

The JCB Floating Frames and Forks aid picking up of loads on uneven ground, designed with an open carriage system for great visibility.

Fits Machines Types: Telehandlers | Carriage Type: Compact Tool Carrier & Q-Fit | Fork Length: 1067 & 1200mm

Please see the Basic Info and Specification sections below for a full details.

Select your requirements from the options below to see the price and availability.

Not sure what you need…? No problem. Simply contact us for assistance.

Select Attachment options for Price and Availability

Your quotation

First Name*

Last Name*

Email*

Phone*

Any specific questions?:

Marketing Communications Preference:*

Yes I am happy to receive direct marketing communications from Greenshields JCB and understand that I will be able to unsubscribe at any future time if I wish to stop receiving them

No thanks, I would not like to receive any information from Greenshields JCB other than to process my immediate enquiry.

The reCAPTCHA verification period has expired. Please reload the page.

Basic info

JCB Attachments offer a range of Floating Forks and Frames for different carriage pick ups.

The fork frames with floating forks aid pick up of loads on uneven ground by allowing fork tines to ride up and down as they enter the load.
An open carriage design gives great visibility.
Compatible with the Compact Tool Carrier and the Q-Fit Carrier
Q-Fit configuration maximises changeover time, giving improved productivity and improving operator safety
Forks locked into position on fork bay by ‘T’ handles
Allows forks to be quickly interchanged with other attachments

Fits Machine Types:

Telehanders

1 Year Warranty

Specifications

Floating Frames and Forks Specifications

Item	Fork Carriage Type	Operating width	Fork pin dia. mm	Fork length mm	Fork width mm	Fork thickness mm
520-40
Fork frame and forks	Compact Tool Carrier	1015	44.4	1067	80	40
Forks for above	–	–	44.4	1067	80	40
524-50, 525-60, 527-55
Fork frame and forks	Compact Tool Carrier	1270	50.7	1067	100	45
Fork frame and forks	Compact Tool Carrier	1270	50.7	1200	125	40
Forks for above	–	–	50.7	1067	100	45
Forks for above	–	–	50.7	1200	125	40

Carriage Mounted Forks

Carriage pick up	Type	Fork pin dia mm	Fork length mm	Fork width mm	Fork thickness mm
525-60 to 531-70
Q-fit	Floating	50.7	1067	100	40
525-60 to 535-140
Q-fit	Floating	50.7	1200	125	40
535-125, 535-140
Q-fit	Floating	50.7	1067	100	50
Q-fit	Floating	51	1200	100	50
540-140 to 540-180
Q-fit	Floating	57	1067	100	50
Q-fit	Floating	57	1200	100	50
Q-fit	Floating	57	1200	120	50
540-200
Q-fit	Floating	57	1067	100	50
Q-fit	Floating	57	1200	120	50
550-80
Q-fit	Floating	57	1067	120	50
Q-fit	Floating	57	1200	130	60
Q-fit	Floating	57	1200	120	50
