General Purpose Bucket

General Purpose Bucket

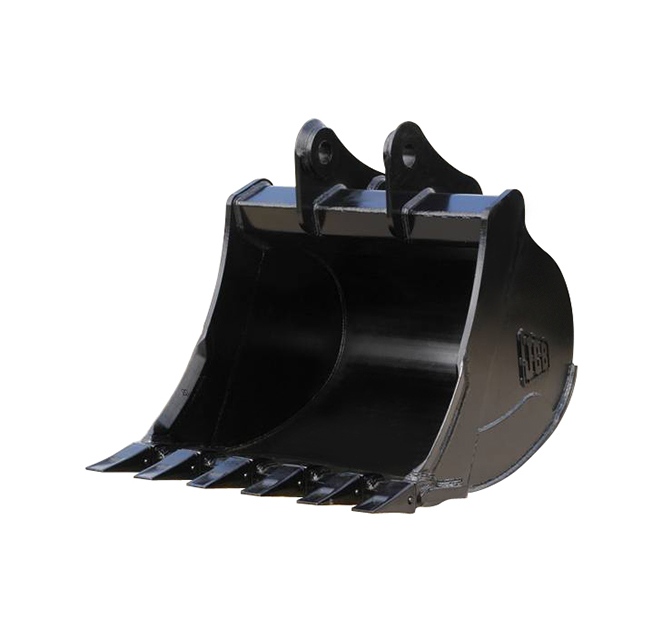

The General Purpose Bucket range has been designed using Finite Element Analysis throughout the engineering process, guaranteeing structural integrity and performances.

Fits Machines Types: Mini Excavators, Large Excavators, Backhoe Loaders | Direct mount or Hitch mounted | Bucket Size: 6 to 69 inch

Please see the Basic Info and Specification sections below for a full details.

Select your requirements from the options below to see the price and availability.

Not sure what you need…? No problem. Simply contact us for assistance.

Select Attachment options for Price and Availability

Your quotation

Basic info

The General Purpose Bucket range has been designed using Finite Element Analysis throughout the engineering process, guaranteeing structural integrity and performances.

Each bucket comes with a side plate reinforcement offering additional strength and rigidity
Innovative design for ultimate digging, retention and release
Lower pin position for class leading tear out
Pivot pins / Kits are available to enable quick hitch mounting for increased productivity
All wear parts are replaceable for an extended working life
Hitch mounted version supplied complete with pins

Fits Machine Types:

Mini Excavators
Large Excavators
Backhoe Loaders

1 Year Warranty

Specifications

General Purpose Bucket Specifications

Outer width mm (inches)	Capacity m3	Weight excluding pins kg	Pin size
Micro 8008
150 (6)	0.008	12	25
230 (9)	0.012	17	25
300 (12)	0.018	19	25
400 (15.5)	0.026	23	25
8010-8020
160 (6)	0.009	20	25
230 (9)	0.014	25	25
300 (12)	0.019	28	25
400 (15.5)	0.026	33	25
460 (18)	0.041	40	25
600 (23.5)	0.046	47	25
15C-19C
150 (6)	0.011	19	30
230 (9)	0.02	20	30
300 (12)	0.027	22	30
400 (15.5)	0.039	26.3	30
450 (17.5)	0.044	27.9	30
600 (23.5)	0.061	33.7	30
8024-8032**
230 (9)	0.023	48	35
300 (12)	0.033	58	35
460 (18)	0.054	71	35
600 (23.5)	0.074	86	35
760 (30)	0.094	100	35
305 (12)	0.52	49	35
8030/8035*
230 (9)	0.020	57	35
300 (12)	0.04	69	35
450 (17.5)	0.060	83	35
600 (23.5)	0.09	97	35
760 (30)	0.110	113	35
8040/8055**
230 (9)	0.03	56	40
300 (12)	0.05	61	40
450 (17.5)	0.080	85	40
600 (23.5)	0.1	100	40
750 (29.5)	0.130	121	40
48Z-57C
250 (10)	0.036	71	45
300 (12)	0.044	66	45
350 (14)	0.052	70	45
400 (15.5)	0.060	78	45
450 (17.5)	0.068	82	45
600 (23.5)	0.092	97	45
750 (29.5)	0.116	109	45
800 (31.5)	0.124	116	45
900 (35.5)	0.140	124	45
8052 through to 8085/65R through to 100C***
250 (10)	0.054	98	45
300 (12)	0.069	105	45
350 (14)	0.081	106	45
400 (15.5)	0.103	107	45
450 (17.5)	0.12	114	45
600 (23.5)	0.138	121	45
750 (29.5)	0.174	136	45
800 (31.5)	0.248	167	45
900 (35.5)	0.286	179	45

Width mm (in)	Capacity m³	Teeth	Weight kg
JS130/JS115-JS145/JS130W-JS145W/JS220LR/JS260LR
450 (17.7)	0.21	3	307
600 (23.6)	0.35	3	342
700 (27.6)	0.42	3	366
800 (31.5)	0.5	4	401
900 (35.4)	0.54	4	425
1000 (39.4)	0.66	5	460
1250 (49.2)	0.81	5	506
1350 (53.1)	0.89	6	542
JS160-JS190/JS160W-JS175W/JS330LR/JS360LR
450 (17.7)	0.25	3	411
600 (23.6)	0.38	3	449
700 (27.6)	0.42	3	481
1000 (39.4)	0.7	4	577
1200 (47.2)	0.91	5	646
1300 (51.1)	0.99	5	674
JS200/JS220/210X/220X/JZ255/JS200W
600 (23.6)	0.38	3	545
700 (27.6)	0.51	3	604
900 (35.4)	0.66	4	676
1100 (43.3)	0.81	4	730
1200 (47.2)	0.95	5	802
1350 (53.1)	1.1	5	856
1500 (59)	1.25	6	928
JS240/JS260
600 (23.6)	0.43	3	575
1200 (47.2)	1.05	5	867
1500 (59)	1.37	6	1011
JS290-JS370
900 (35.4)	0.86	4	DISCONTINUED
1350 (53.1)	1.43	5	1058
1500 (59)	1.62	6	1145
1750 (68.9)	1.93	7	1277

Outer width mm (in)	Capacity m³ (yd³)	Weight no pins kg (lb)
1CX
230 ⁽9⁾	0.026 ⁽0.034⁾	51 ⁽112⁾
305 ⁽12⁾	0.038 ⁽0.05⁾	54 ⁽119⁾
450 ⁽18⁾	0.062 ⁽0.081⁾	59 ⁽130⁾
600 ⁽24⁾	0.086 ⁽0.112⁾	72 ⁽159⁾
Midi CX
230 ⁽9⁾	0.028 ⁽0.037⁾	52 ⁽115⁾
305 ⁽12⁾	0.04 ⁽0.052⁾	55 ⁽121⁾
350 ⁽14⁾	0.048 ⁽0.063⁾	57 ⁽126⁾
405 ⁽16⁾	0.057 ⁽0.075⁾	63 ⁽139⁾
450 ⁽18⁾	0.065 ⁽0.085⁾	68 ⁽150⁾
600 ⁽24⁾	0.091 ⁽0.119⁾	87 ⁽192⁾
3CX Compact/2CX
230 ⁽9⁾	0.028 ⁽0.037⁾	52 ⁽115⁾
305 ⁽12⁾	0.04 ⁽0.052⁾	55 ⁽121⁾
350 ⁽14⁾	0.048 ⁽0.063⁾	57 ⁽126⁾
405 ⁽16⁾	0.057 ⁽0.075⁾	63 ⁽139⁾
450 ⁽18⁾	0.065 ⁽0.085⁾	68 ⁽150⁾
600 ⁽24⁾	0.091 ⁽0.119⁾	87 ⁽192⁾
750 ⁽30⁾	0.117 ⁽0.153⁾	101 ⁽223⁾

Outer width mm (in)	Capacity m³ (yd³)	Weight (excluding pins) kg (lb)
3CX/4CX/5CX
250 ⁽10⁾	0.054 ⁽0.071⁾	98 ⁽216⁾
305 ⁽12⁾	0.069 ⁽0.09⁾	105 ⁽231⁾
350 ⁽14⁾	0.081 ⁽0.106⁾	106 ⁽234⁾
405 ⁽16⁾	0.103 ⁽0.135⁾	107 ⁽236⁾
450 ⁽18⁾	0.12 ⁽0.157⁾	114 ⁽251⁾
500 ⁽20⁾	0.138 ⁽0.181⁾	121 ⁽267⁾
600 ⁽24⁾	0.174 ⁽0.228⁾	136 ⁽300⁾
800 ⁽31⁾	0.248 ⁽0.324⁾	167 ⁽368⁾
900 ⁽35⁾	0.286 ⁽0.374⁾	179 (395)
